PML Magnetic Lifter
Features:
3.5 times of Safety factor
strong attraction power, can be used for long time
small size, light weight
easy to operate and safe in handling
Application: For moving block,cylinder or other shape
of magnetic materials

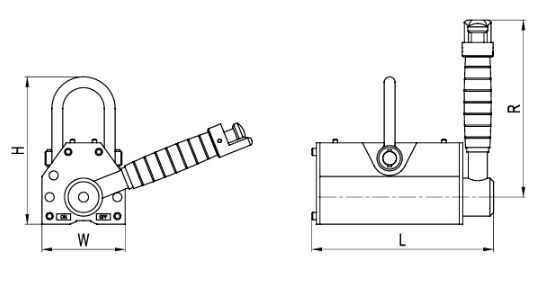

Model | Rated lifting strength (kgf) | Cylindrical (kgf) | Max pull-off strength (kgf) | L | W | H | R | Operation temperature (℃) | Dead weight (kg) |
PML-100 | 100 | 50 | 350 | 125 | 64 | 120 | 145 | -40~+80 | 3 |
PML-300 | 300 | 150 | 1050 | 200 | 92 | 163 | 195 | -40~+80 | 10 |
PML-600 | 600 | 300 | 2100 | 278 | 122 | 221 | 220 | -40~+80 | 23 |
PML-1000 | 1000 | 500 | 3500 | 330 | 177 | 295 | 315 | -40~+80 | 55 |
PML-2000 | 2000 | 1000 | 7000 | 450 | 215 | 382 | 460 | -40~+80 | 125 |
PML-3000 | 3000 | 1200 | 10500 | 525 | 255 | 456 | 735 | -40~+80 | 218 |
PML-6000 | 6000 | 21000 | 695 | 432 | 480 | 830 | -40~+80 | 430 |
