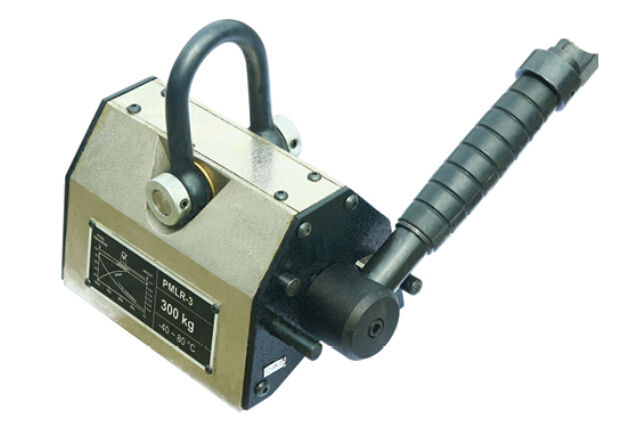

PMLR Magnetic Lifter
Features:
3.5 times of Safety factorstrong attraction power, long life timesmall size, light weighteasy to operate and safe in handling
Application: For moving block,cylinder or other
shape of magnetic materials

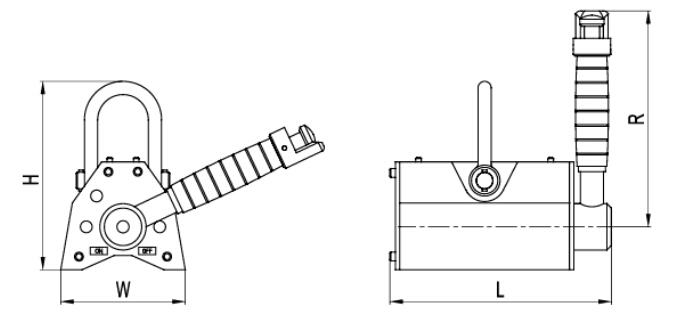

Model | Rated lifting strength (kgf) | Cylindrical Lifting strength | Max pull-off strength (kgf) | L | W | H | R | Operation temperature (℃) | Dead weight (kg) |
PMLR-100 | 100 | 70 | 300 | 125 | 85 | 127 | 145 | -40~+80 | 3.5 |
PMLR-300 | 300 | 210 | 900 | 200 | 123 | 179 | 195 | -40~+80 | 12.5 |
PMLR-600 | 600 | 420 | 1800 | 278 | 194 | 246 | 220 | -40~+80 | 32.5 |
PMLR-1000 | 1000 | 700 | 3000 | 330 | 279 | 333 | 315 | -40~+80 | 80 |
PMLR-2000 | 2000 | 1400 | 6000 | 450 | 371 | 444 | 460 | -40~+80 | 200 |
PMLR-3000 | 3000 | 2100 | 9000 | 525 | 444 | 531 | 735 | -40~+80 | 350 |
